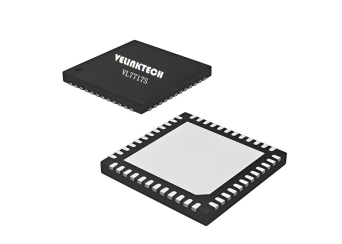

VL7717S
VL7717S
Product Features
· A-PHY & HSMT serializer chip, 2/3.2/4/6.4/8Gbps
· Full data rate support over Coax/STP, up to 15m
· Lower power consumption compared with currently known competing products

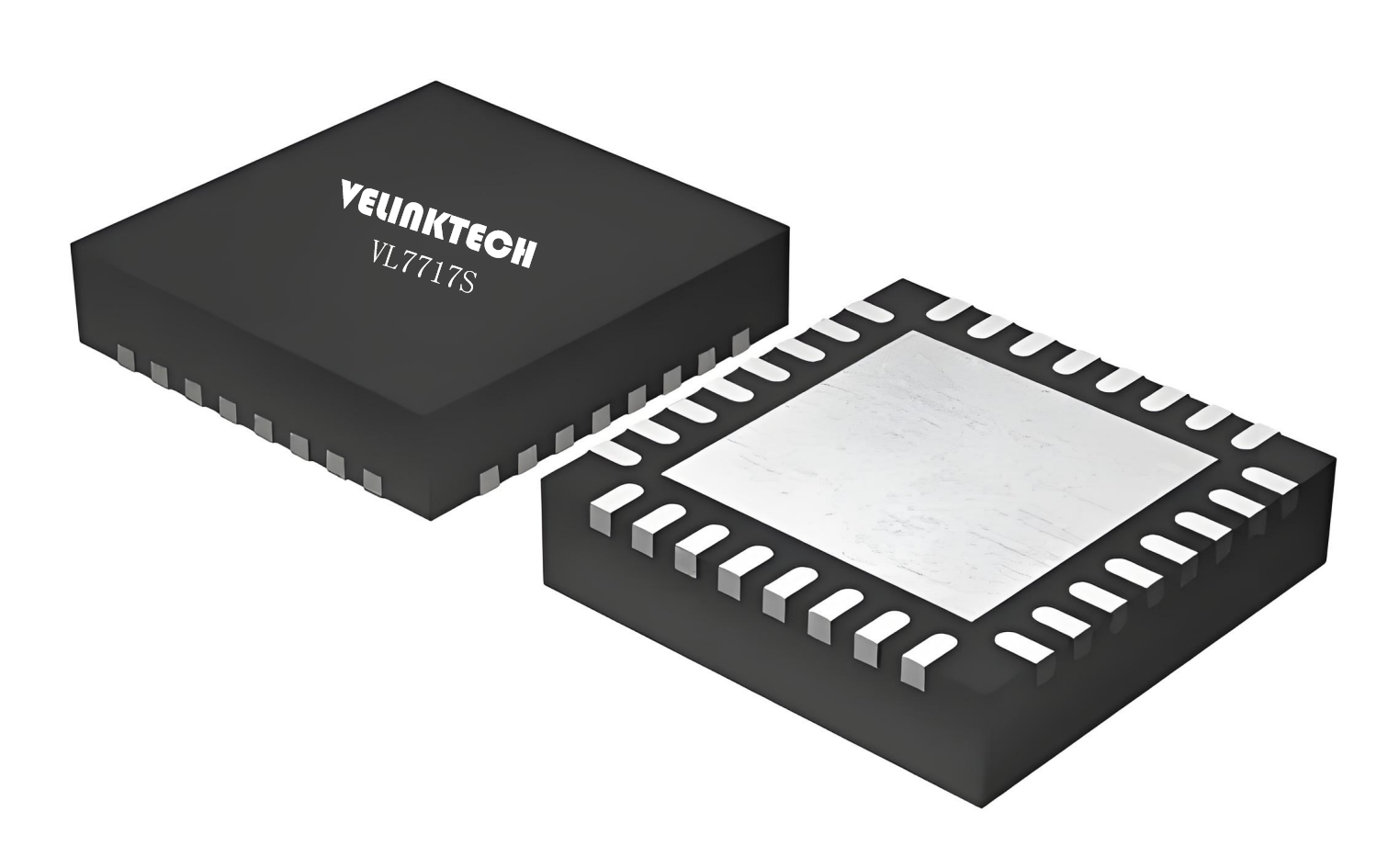

· QFN32 5mm x 5mm package, compatible with mainstream market chip packages
· Automotive-grade process by TSMC, with cost advantages over major competitors
Specifications
A-PHY
Support MIPI A-PHY & HSMT standard
Support PAL I2C, PAL CSI
Downlink:2/3.2/4/6.4/8Gbps data rates, Uplink: 100Mbps
Support Coax/STP up to 15m at all speed
MIPI CSI2
D-PHY CSl-2 input
4 data lanes, up to 2.5 Gbps per lane
Up to 16 virtual channels
I2C
Master and Slave mode 100KHz~1MHz
Clock output
Local precision CLK output
Sync Output
Output synchronize signals
GPIOs
Up to 5 GPIOs
Peripherals
2x12C, 5xGPI0
Package
QFN32,5mmx5mm
Temperature
Working temperature:-40℃~105℃
Qualification
AEC-Q100 Grade 2 qualified
