VL7718

Product Features

· A-PHY deserializer chip, 2-channel Link, 2/3.2/4/6.4/8Gbps

· Full data rate support over Coax/STP, up to 15m

· Lower power consumption compared with currently known competing products

· QFN48 7mm x 7mm package, compatible with mainstream market chip packages

· Automotive-grade TSMC process, with cost advantages over major competitors

Specifications

A-PHY input

2-port Receiver with independently Configurable
MIPI A-PHY & HSMT standard PAL_I2C,PAL_CSI,PAL_GPIO
Support Coax/STP up to 15m at all speed
Downlink:2/3.2/4/6.4/8Gbps data rates, Uplink: 100Mbps

MIPI CSI-2
Output

C/D-PHY Combo CSI x 2 Output
D-PHY can be configured as 4+4,4+2,2+2 lanes,Up to 2.5 Gbps per lane,up to 16 virtual channels
C-PHY up to 5.7 Gbps/Lane, 4 lanes

I2C

Master and Slave mode 100KHz~1MHz

Clock output

Local precision CLK output

Package

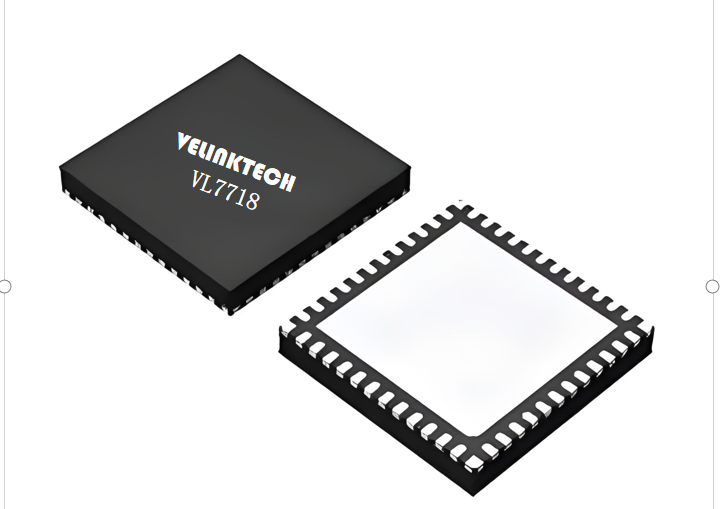

QFN48, 7mmX7mm compatible with 3rd party

Temperature

Working temperature:-40℃~105℃

Qualification

AEC-Q100 Grade 2 qualified
